CSF Radiator (MPN: 3653)

High Performance Cooling Solution

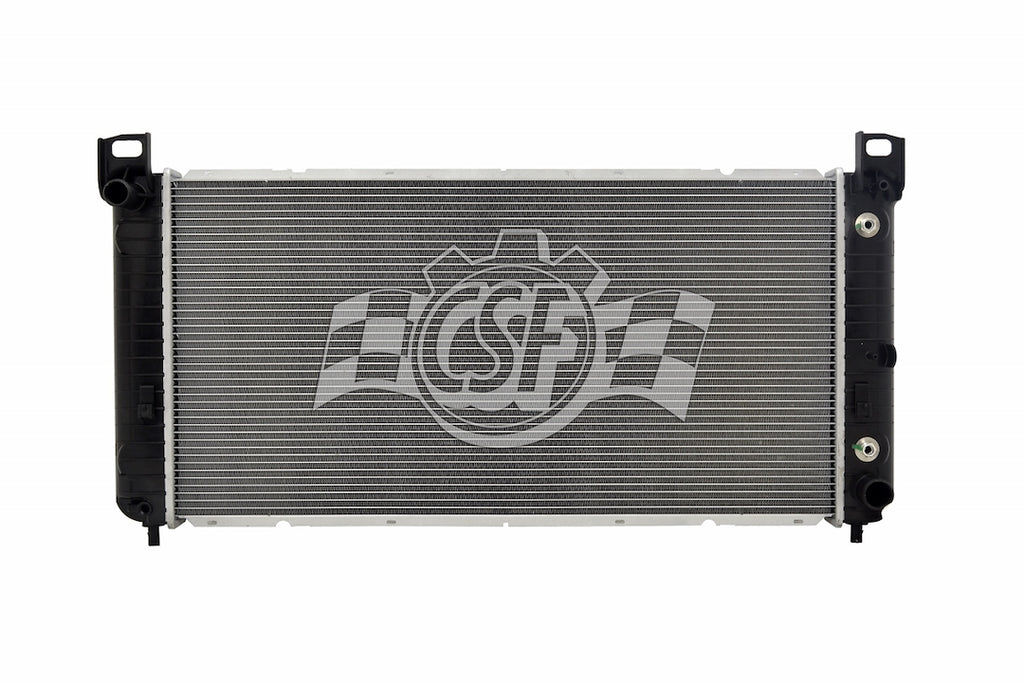

The CSF Radiator 3653 is engineered for optimal cooling performance, featuring a robust aluminum core and a crossflow design. This radiator is meticulously crafted to meet high performance standards, ensuring reliable operation for a variety of vehicles.

Features

• OEM specified plastic tank and aluminum core construction
• Tanks made from virgin grade engineered plastic resins for enhanced strength and durability
• Gaskets constructed from special grade EPDM rubber to withstand extreme temperatures up to -120 degrees Fahrenheit
• Welded type or latest generation B-tube design for efficient fluid flow
• High performance multi-louvered fins designed to OEM specifications
• 100 percent leak tested at 150 percent of operating pressure before leaving the factory
• Integrated high performance transmission cooler with built-in turbulator, when applicable
• Drop-in fit for easy installation
• All components are installed, torqued, and tested during assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3653
• Flow Direction: Crossflow
• Overall Length (IN): 41-7/8
• Overall Height (IN): 23-9/16
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-5/16
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-9/16
• Finish: Natural
• Color: Black/Silver
• Core Length (IN): 34
• Core Height (IN): 17-1/4
• Core Depth (IN): 1-1/4
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No
